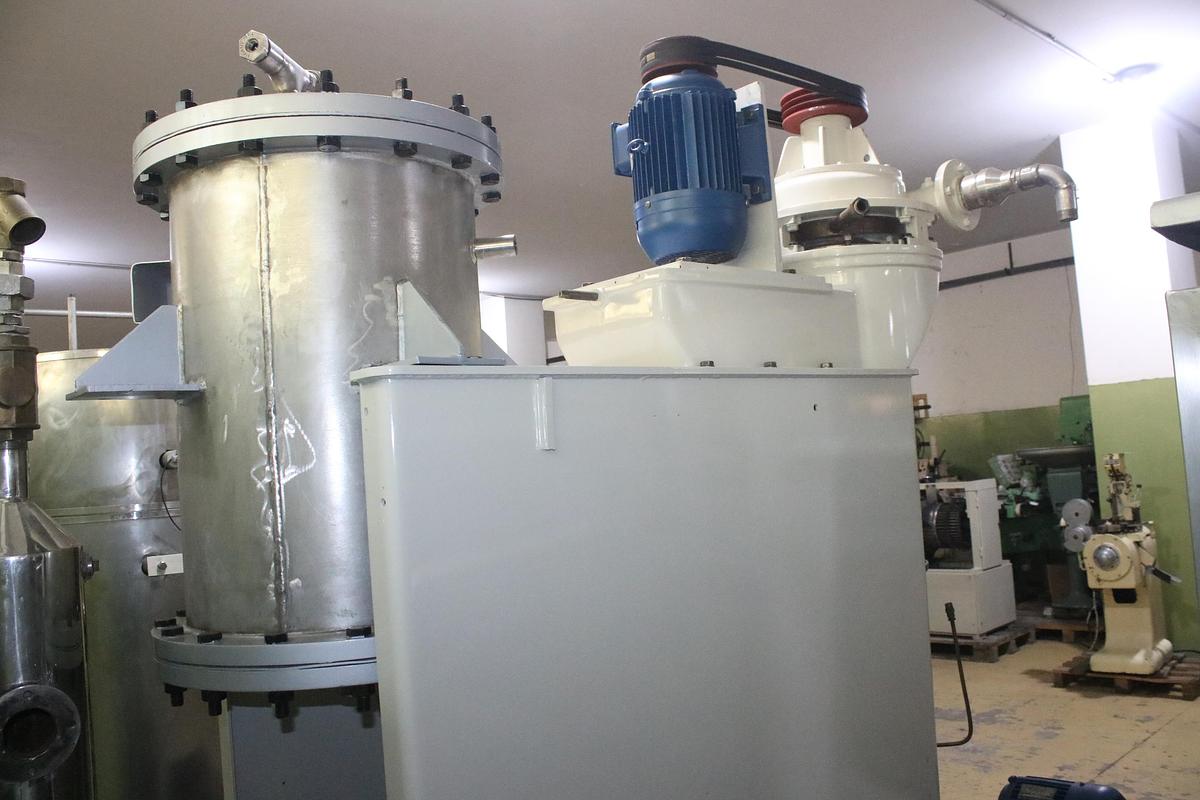

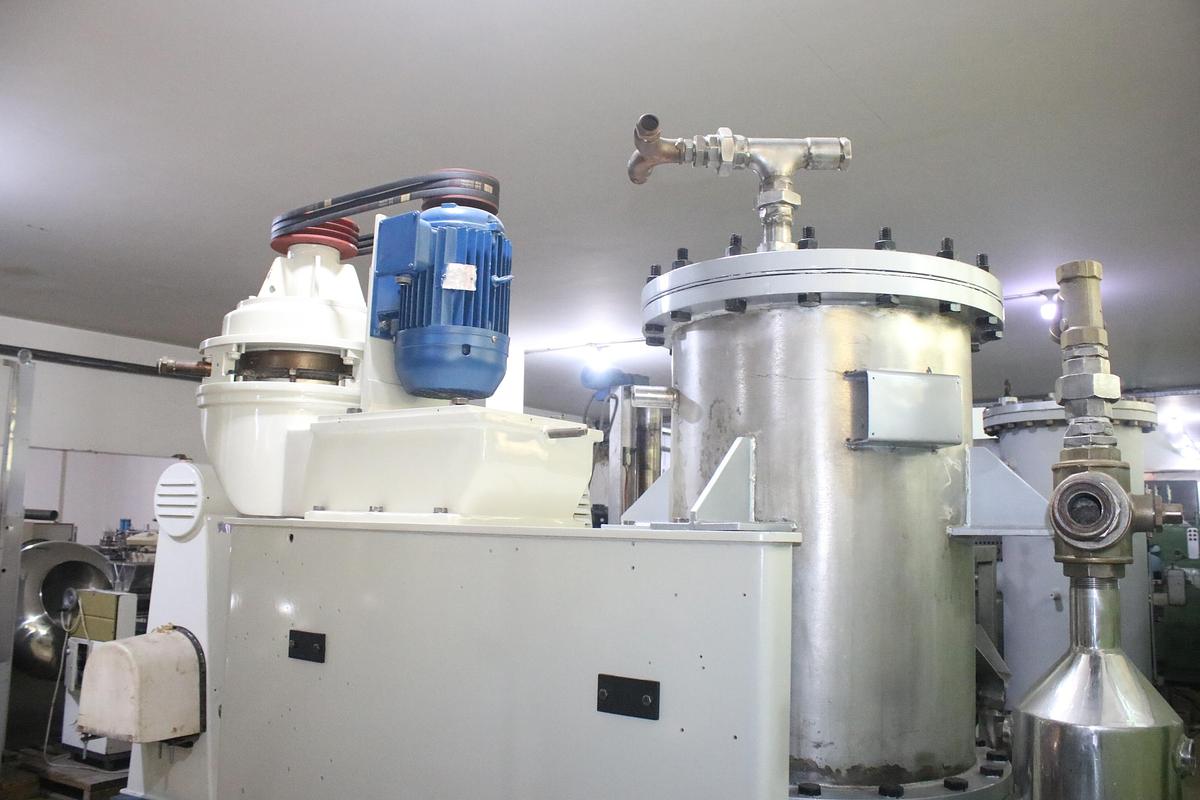

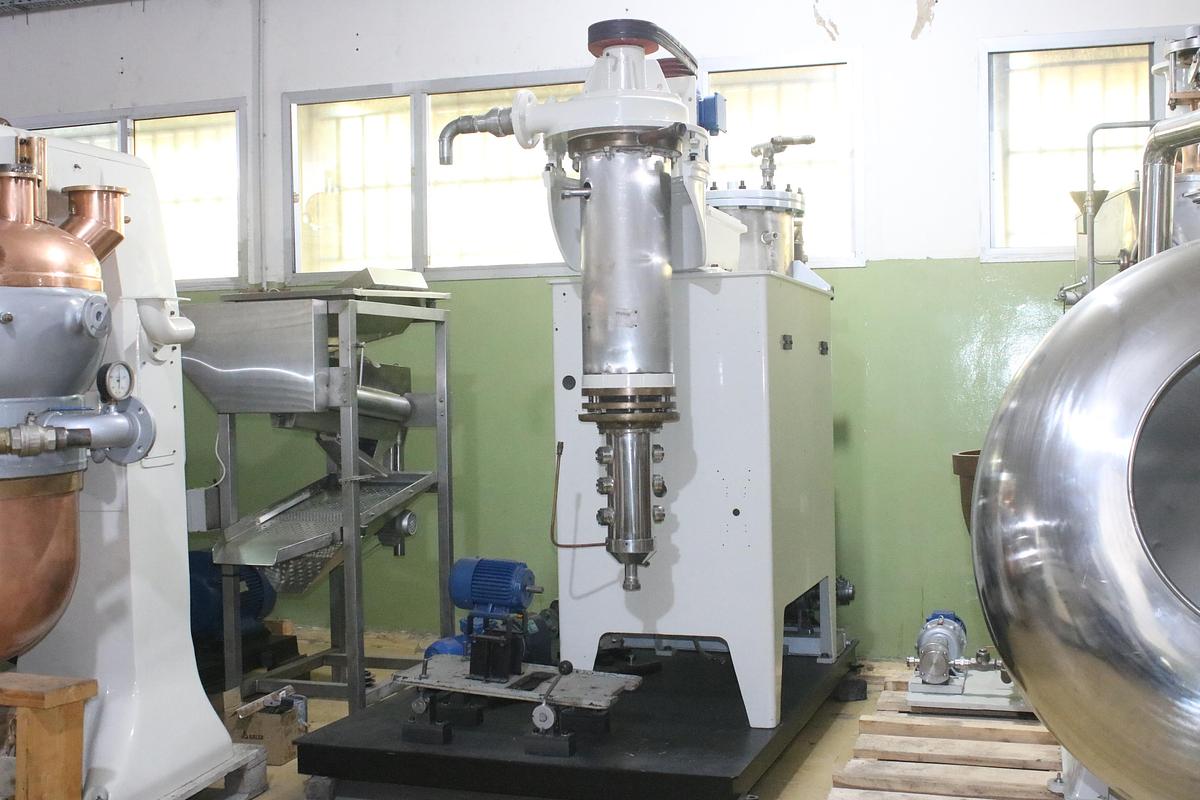

Baker Perkins 138-20 Microfilm Vacuum Cooker

The Baker Perkins / APV Baker 138-20/PHC/VP Microfilm Vacuum Cooker is a continuous scraped-film confectionery cooker designed for high-boiled and low-boiled products, including hard candy, butterscotch, milk boils and toffee.

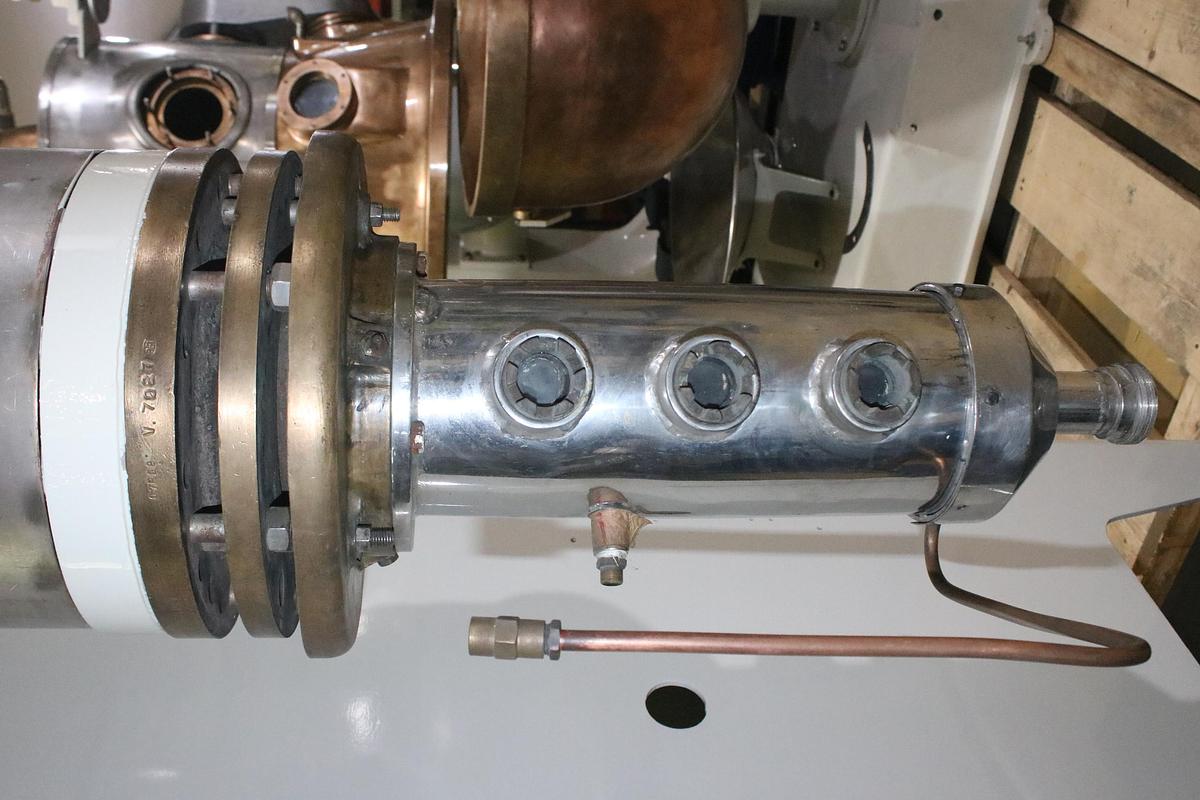

Its Microfilm swept-surface technology provides rapid cooking with minimal process inversion and efficient vacuum evaporation. The high-speed Size 20 rotor uses hinged blades to continuously wipe the inside of a steam-jacketed bronze cooking tube, spreading the syrup into a thin film for rapid and controlled heat transfer. This design is particularly suitable for milk- and cream-containing confectionery, helping minimize burning and reduce cleaning requirements.

The system includes a 150-liter stainless steel syrup reservoir, inlet filters and an infinitely variable syrup feed pump with manually adjustable throughput.

Manufacturer / Brand Baker Perkins / APV Baker

Model 138-20/PHC/VP Microfilm

Condition Refurbished

Rotor Size 20 Microfilm Rotor

Syrup Reservoir 150 liters, stainless steel

Output Up to 400 kg/hr (880 lb/hr)

Power 15.6 kW (21 HP)

Steam Consumption Approx. 140 kg/hr (310 lb/hr)

PHC Preheater fitted

P Discharge pump fitted

V Vacuum system fitted

Technical information is based on manufacturer literature and available machine documentation and may vary according to machine configuration or subsequent modifications.
