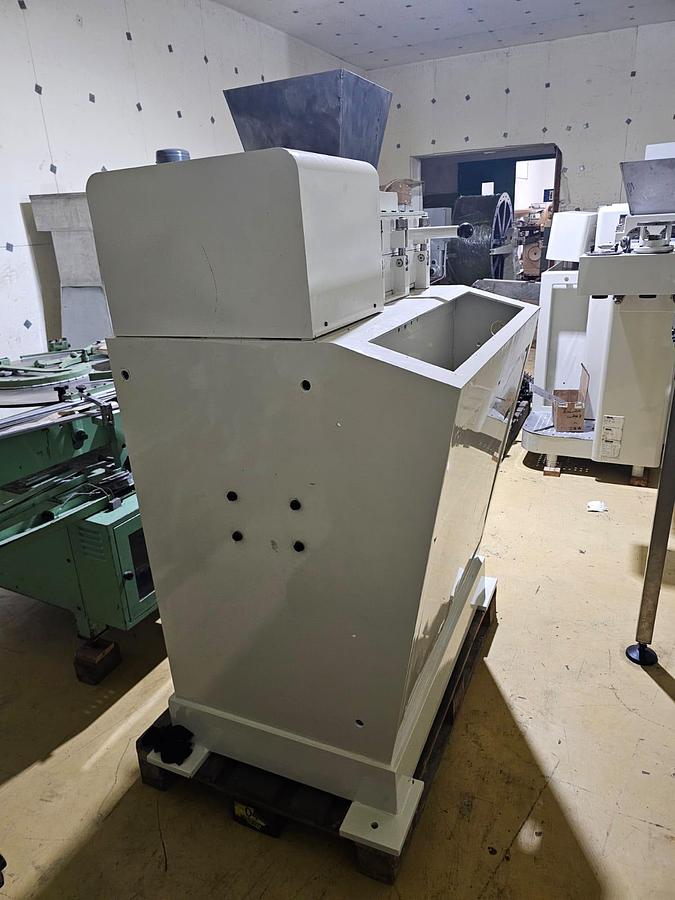

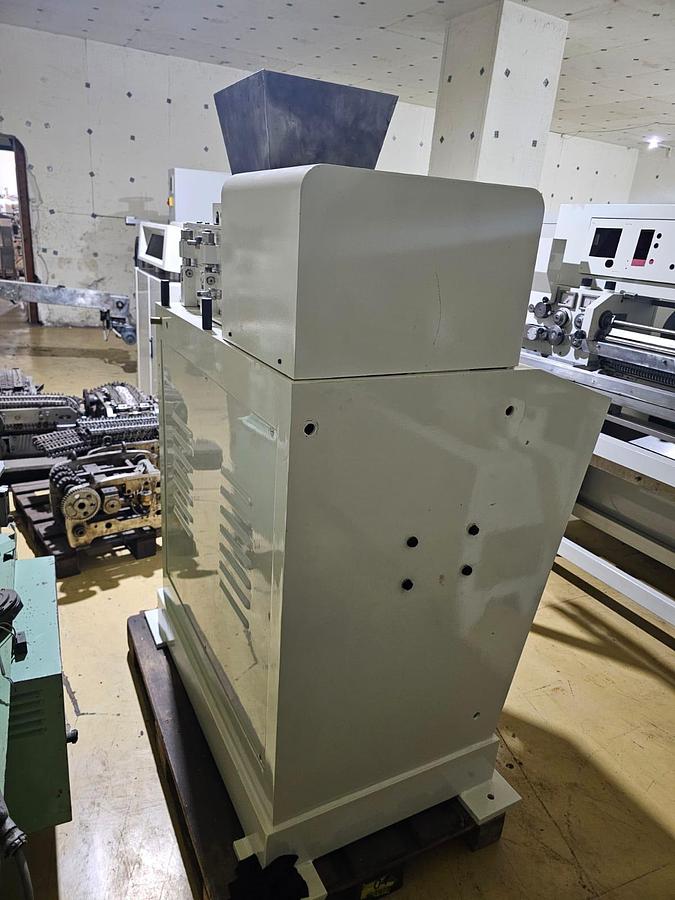

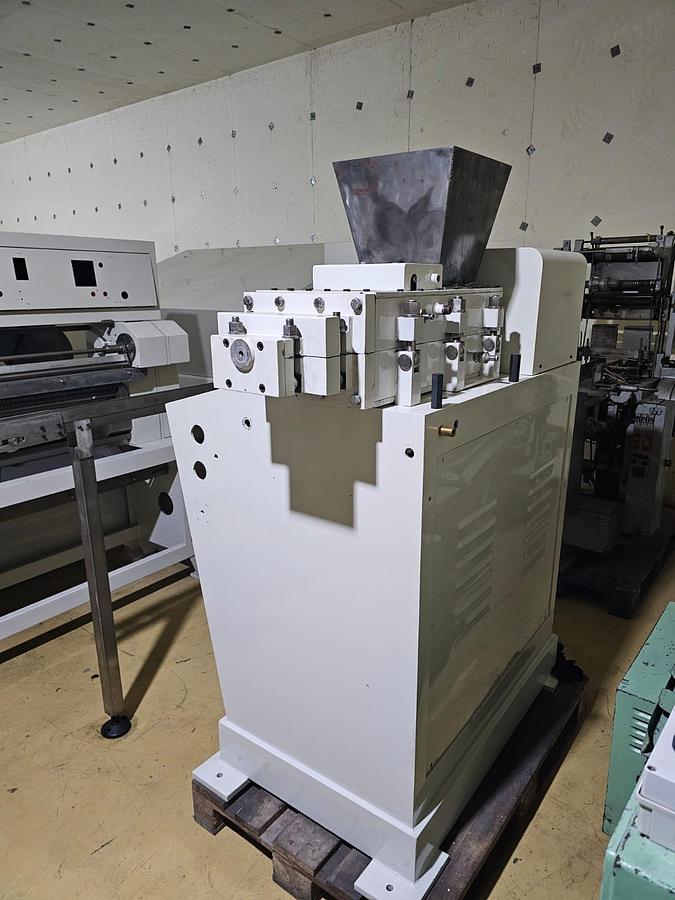

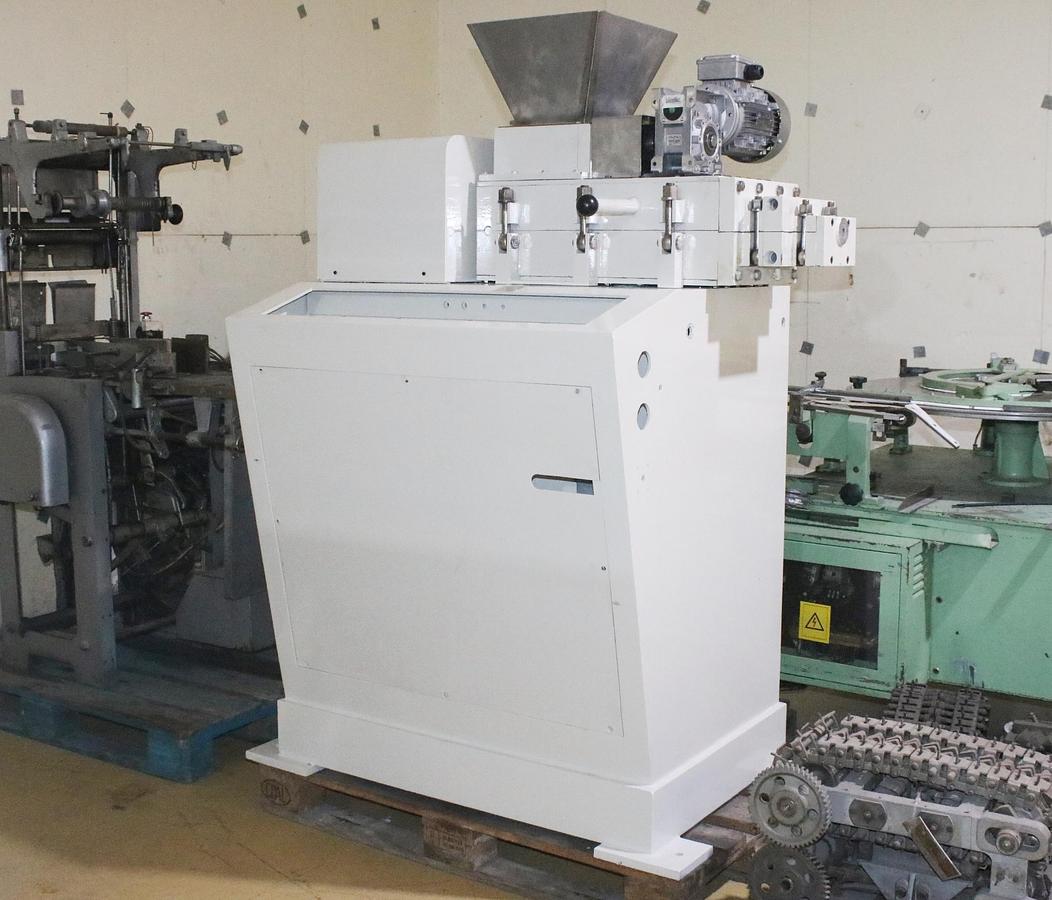

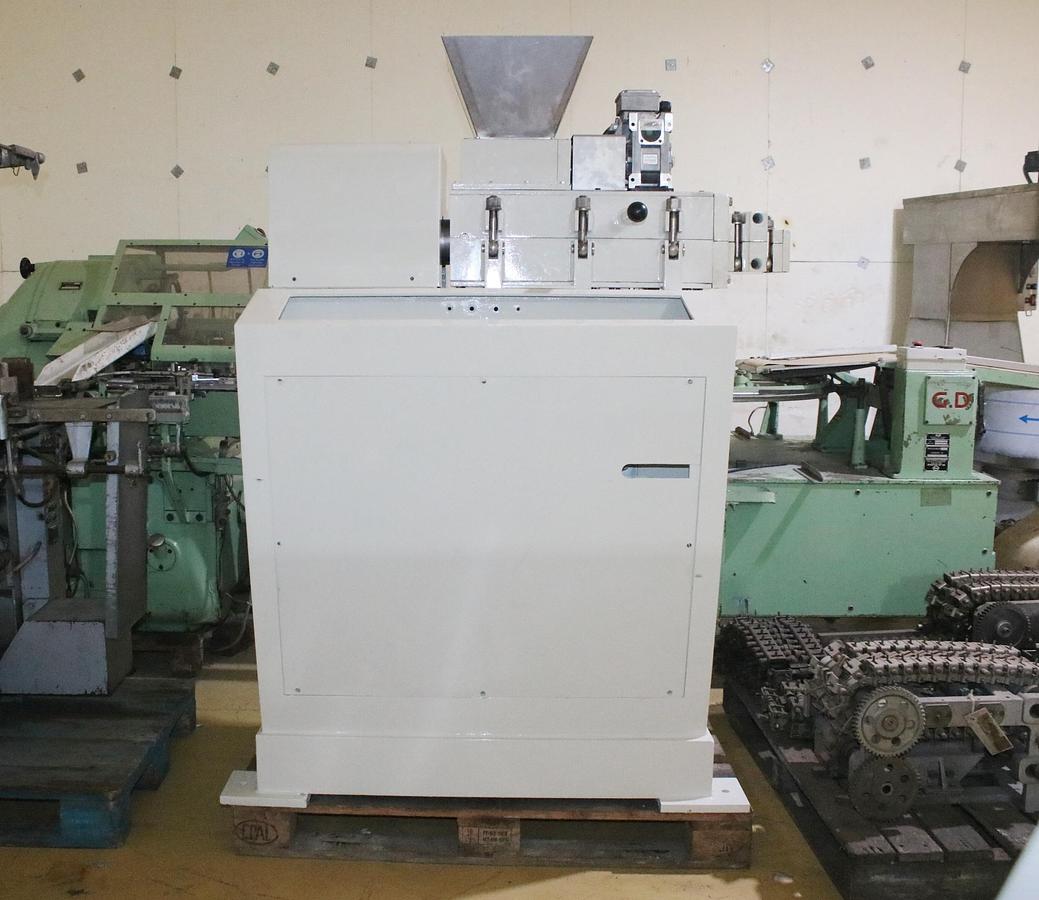

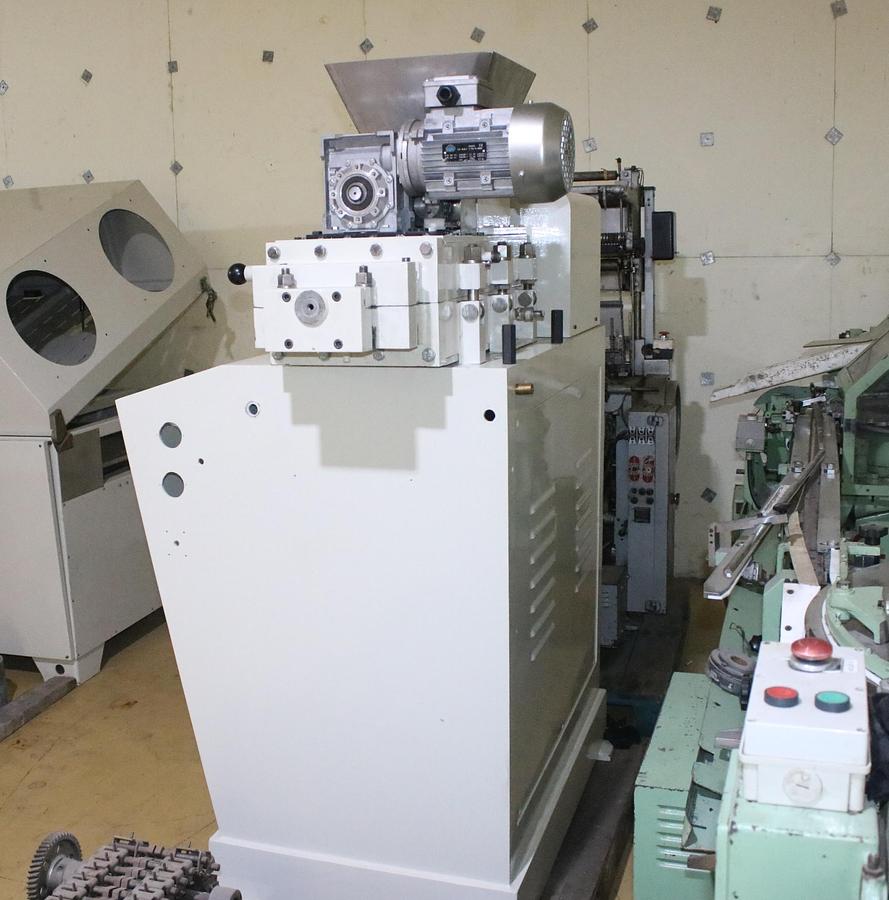

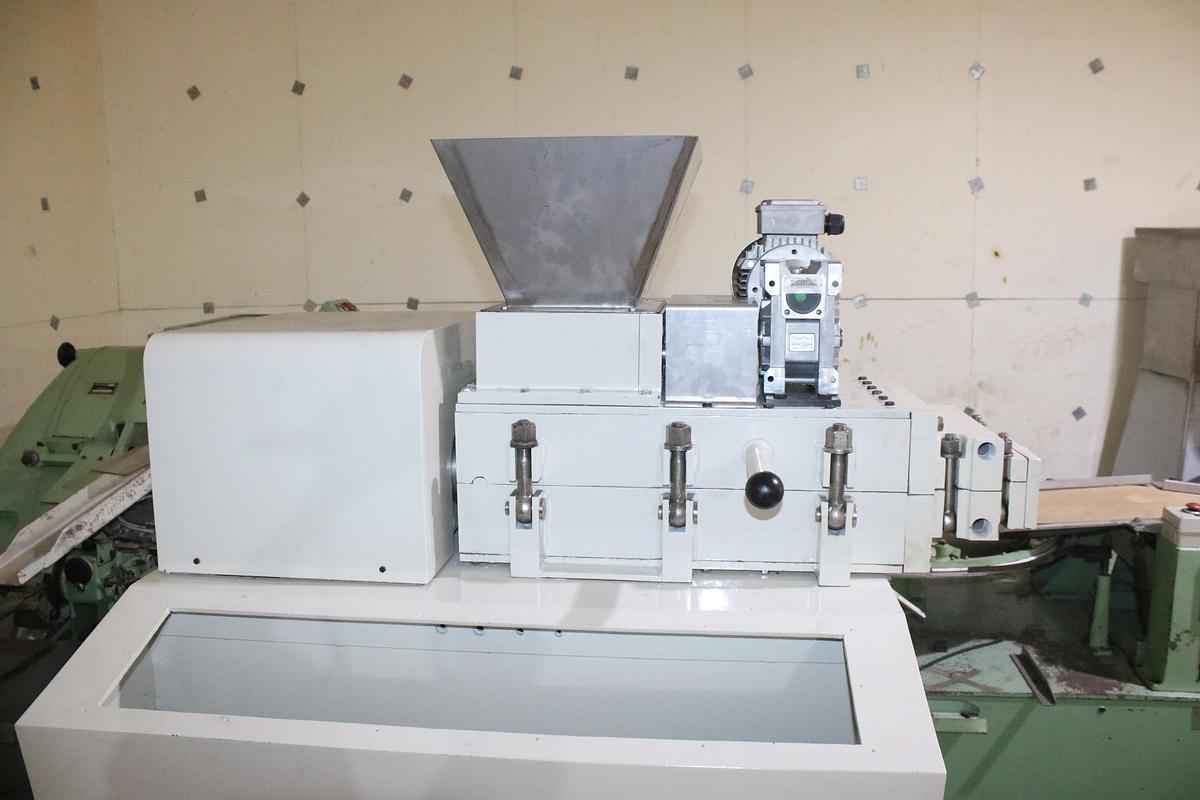

WLS KM2 Extruder

The WLS KM2 Extruder is designed for the efficient production of chewing gum and soft candy ropes, including both solid and center-filled products. It can produce round ropes, flat ropes, profiles, or sheets with adjustable thickness. The machine is currently equipped with a center-filled round rope extrusion head.

With a production capacity of approximately 500 kg/h, depending on product size and shape, the KM2 offers reliable and flexible extrusion for confectionery production lines.

Heat Control and Features:

The extruder chamber is double jacketed with a water pump to circulate water inside, along with a heating water device and a water valve opening to permit entering cool water when needed.

The whole system is equipped with a heat temperature controller.

Application: Chewing Gum & Soft Candy

Product Type: Solid or Center-Filled

Extrusion: Round Ropes, Flat Ropes, Profiles & Sheets

Installed Head: Center-Filled Round Rope

Capacity: Approx. 500 kg/h*

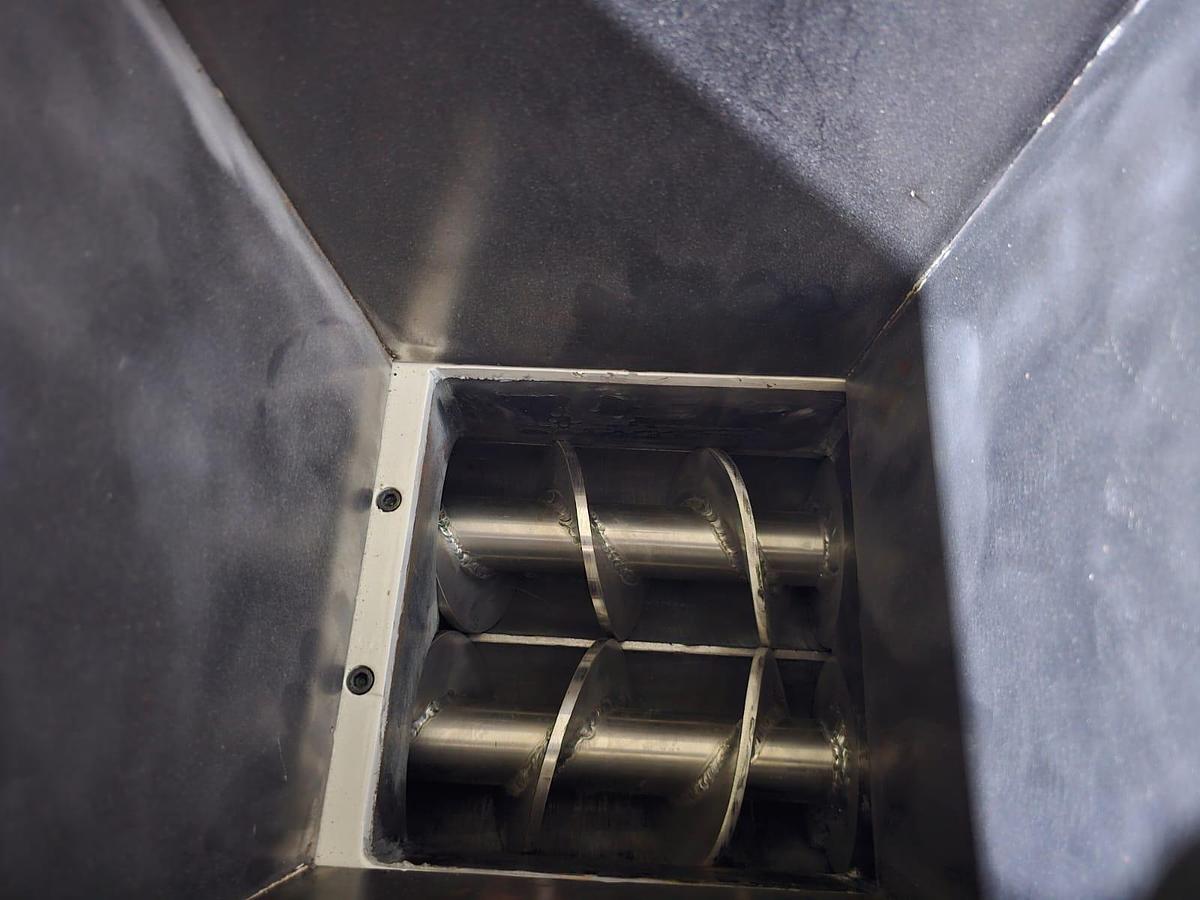

Extrusion Screws: 2 interchangeable screws

Screw Diameter: 100 mm each

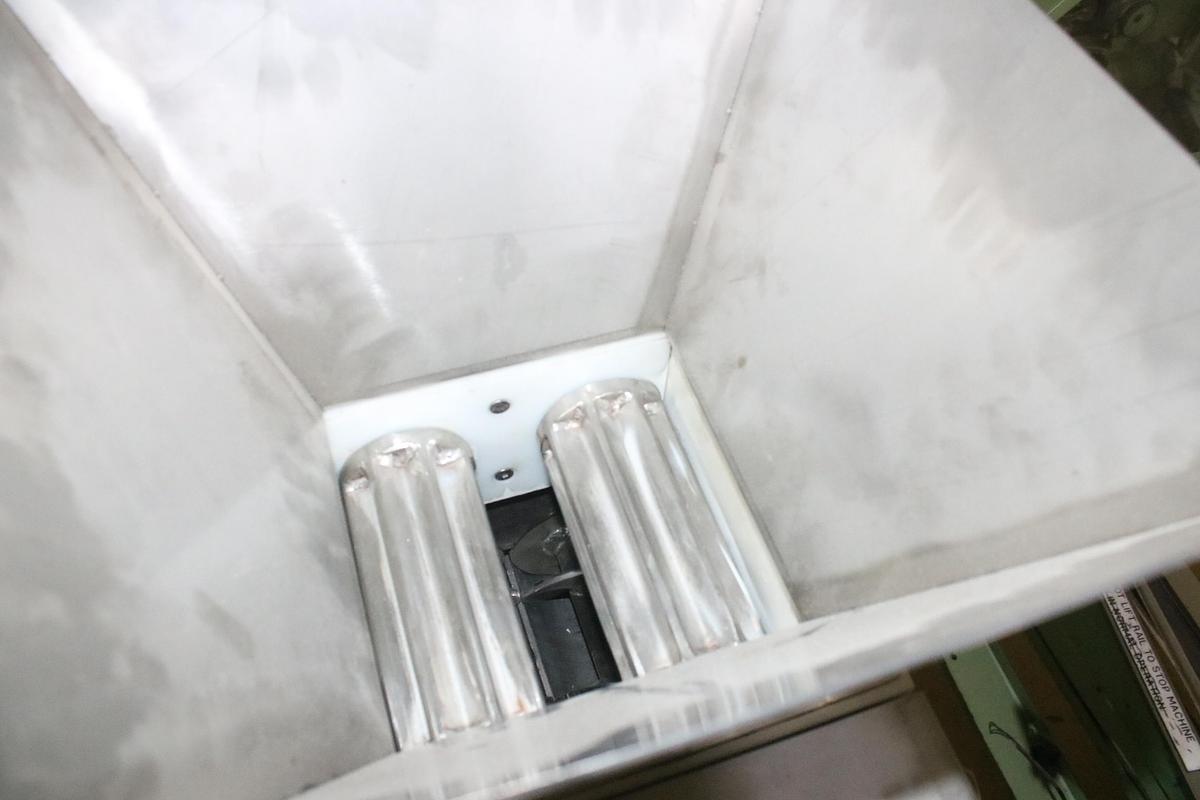

Feeding System: 2 independently driven feeding drums

Speed Control: Separate inverters

Main Motor: 7.5 HP

Inverter: Delta

Extrusion Chamber: Double-jacketed

Cooling/Heating: Water circulation system with pump, heating unit and cooling-water valve

Temperature Control: Automatic temperature controller
