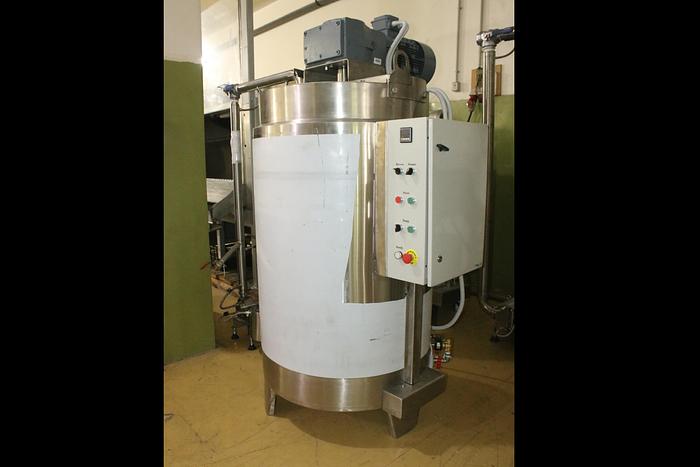

BM500Z Chocolate Refining Ball Mill


orCall +961 5 437 555


BM500Z Chocolate Refining Ball Mill


  • Double jacket for hot and cold water circulation.
  • Water is heated when required using electric heaters.
  • Solenoid valve to allow the entrance of cold water.
  • Temperature controller to control the heating and cooling processes.
  • Made from stainless steel (AISI-304).

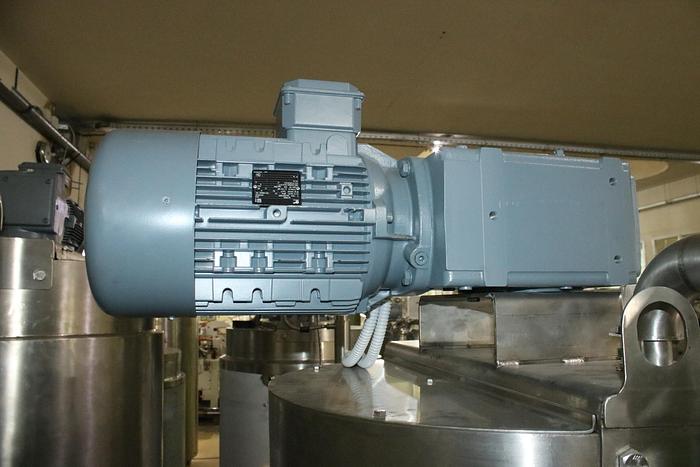

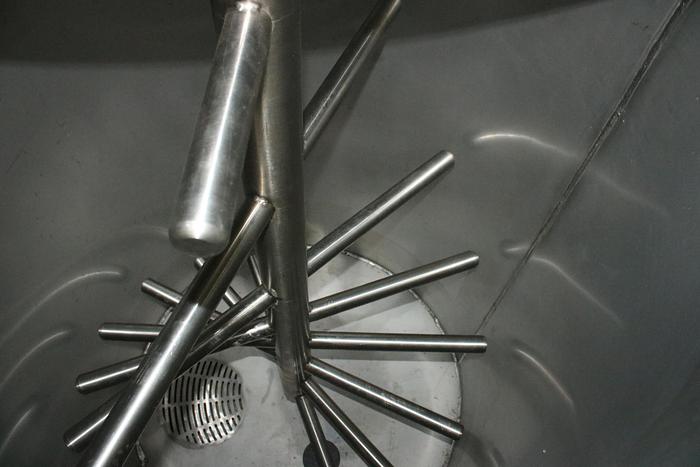

  • SS stirrer inside, driven by a Nord motor.
  • a water pump installed that helps water circulate inside the double jacket.

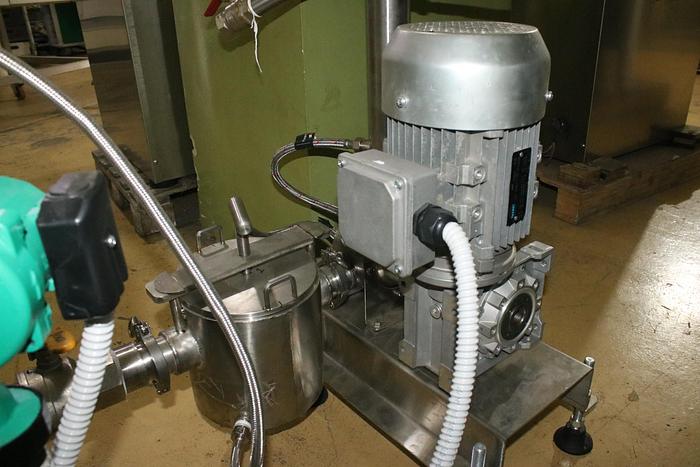

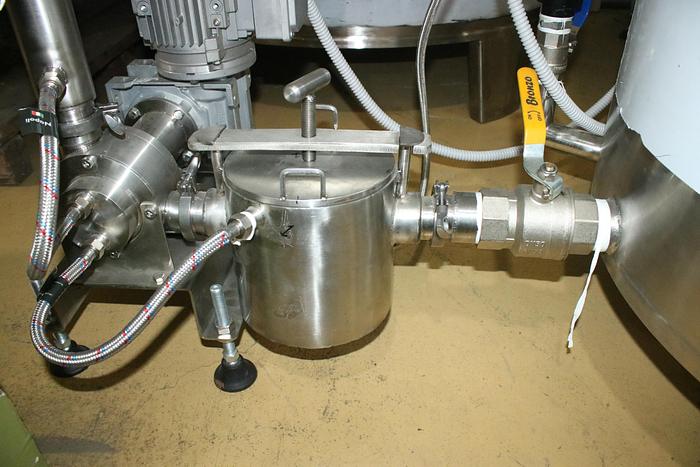

  • Chocolate Pump to circulate chocolate, ensuring lower fineness in a shorter time.


ManufacturerFormost Machinary
Capacity500 Kg
MaterialStainless-Steel (AISI 304).
Motor BrandNord Germany
Motor Power10HP, 7.5Kw
Dimensions LxWxH180 x 120 x 210 cm
Duration for refining process6 to 8 hrs
Chocolate output smoothness 20 to 22 microns
ThicknessStainless Steel thickness: inner 6mm, outer 3mm, bottom 10mm
Chrome BallsWith 400 Kg 8 mm hard chrome balls.
